[concept]

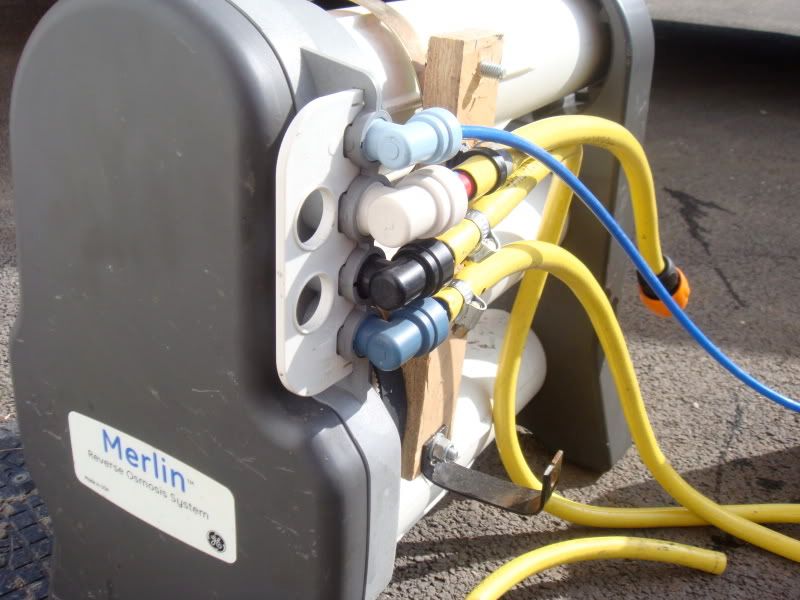

in this pic, can anyone tell me which port is inlet/outlet/waste

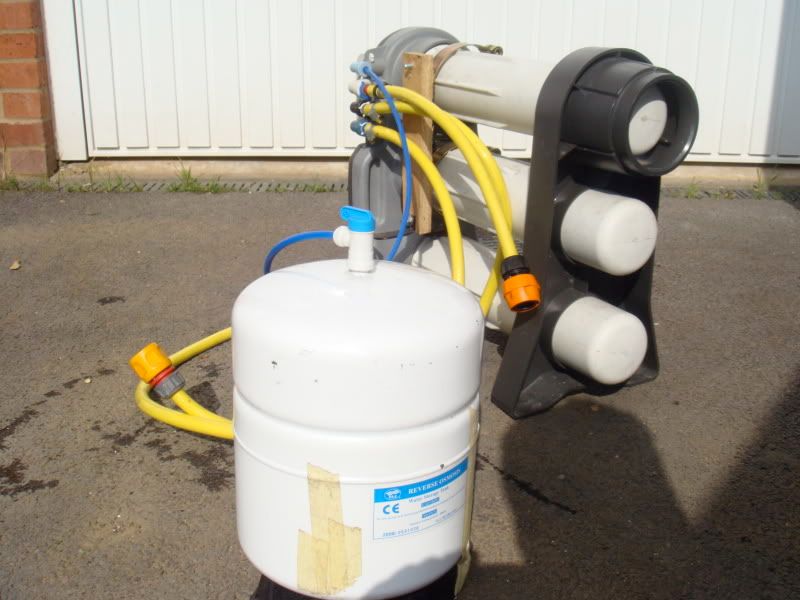

in this one, can anyone tell me what this canister is, what i am meant to do with it, and do i need it?!



thanks again!

[Alex Gardiner]

Inlet is the larger half inch white elbow connector. Outlet is the 3/8" blue elbow and waste is 3/8" black connector. The tank is a flush tank which primes the membranes on start up with pure water, helps them last slightly longer. Not really needed, but useful.

[concept]

thanks alex!

can it be laid on its side ok?

looking at different ways to mount it in van.

[Window Washers]

thanks alex!

can it be laid on its side ok?

looking at different ways to mount it in van.

I would have it standing upright m8, if you want it out the way then in the far right side next to cage if it will fit there  then run hoses round tank frame, on it side would take up more room and also easier to damage

[Alex Gardiner]

thanks alex!

can it be laid on its side ok?

looking at different ways to mount it in van.

The Merlin unit can be laid on its side if needed.
