Bored again so making a 12v 4way Distribution Box
« on: January 29, 2013, 09:34:53 pm »

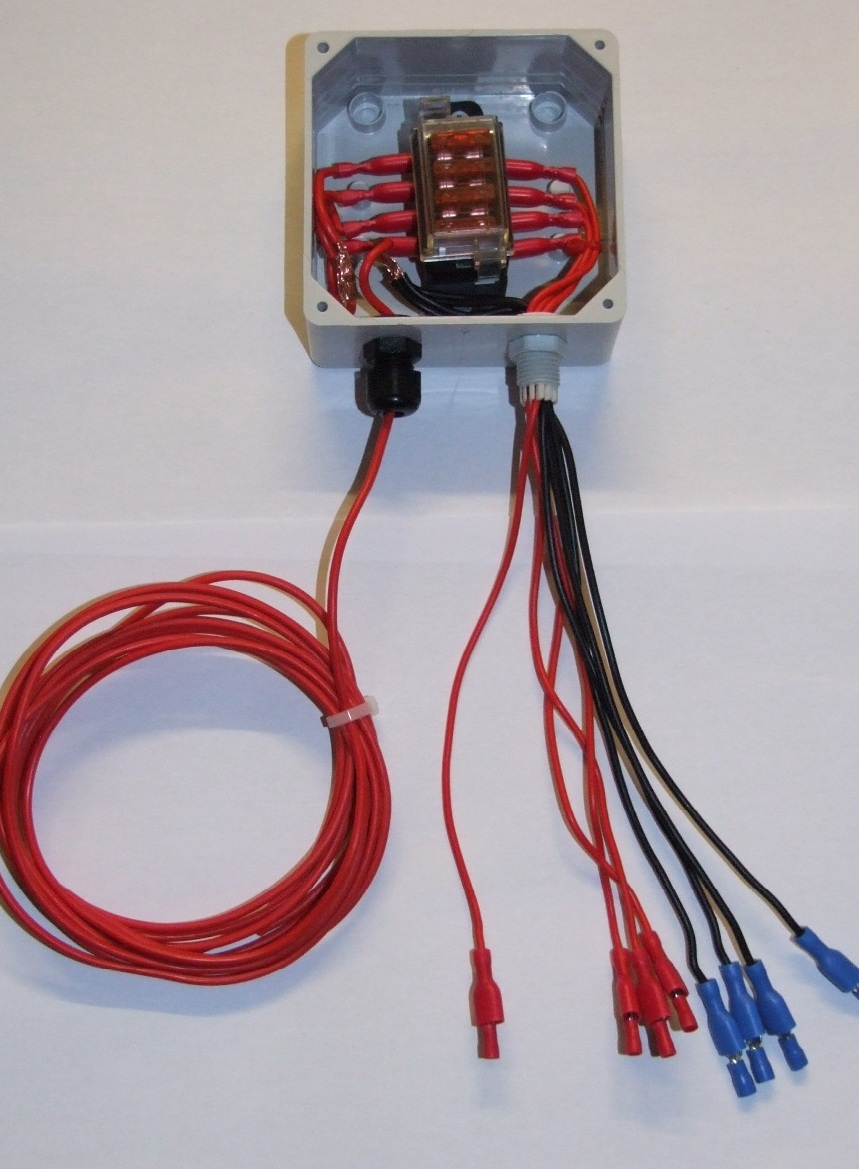

got bored again tonight so decided to make a 12v 4 way distribution box,

nearly finished a prototype just need to pick up some connectors and a heavy duty negative wire then its done!



Ryan @ Transparent, Carlisle

  • Posts: 700
Re: Bored again so making a 12v 4way Distribution Box
« Reply #1 on: January 29, 2013, 10:15:51 pm »
Really tidys the job up.

Stripping van soon, new connecters & hot system, going to do something similar.

Plan to use a larger box, and use a copper connector block, like those you have in domestic.consumer unit. Take a 10mm wire fron battery to the connector. So when I need ti add a circuit, its just a matter of connecting to the block, inline fuse, and away you go ;D

evo

Re: Bored again so making a 12v 4way Distribution Box
« Reply #2 on: January 29, 2013, 10:16:16 pm »
hi mate if you don't mind me asking where do you get your plastic box's from
james

R.C Property

  • Posts: 1599
Re: Bored again so making a 12v 4way Distribution Box
« Reply #3 on: January 29, 2013, 10:17:31 pm »
Really tidys the job up.

Stripping van soon, new connecters & hot system, going to do something similar.

Plan to use a larger box, and use a copper connector block, like those you have in domestic.consumer unit. Take a 10mm wire fron battery to the connector. So when I need ti add a circuit, its just a matter of connecting to the block, inline fuse, and away you go ;D

yer it does, i got a smaller one set in my van for all my stuff. like you say keeps it all together!

R.C Property

  • Posts: 1599
Re: Bored again so making a 12v 4way Distribution Box
« Reply #4 on: January 29, 2013, 10:18:50 pm »
hi mate if you don't mind me asking where do you get your plastic box's from
james
the grey box is from a electrical wholesaler and the fuse holder was from halfords.

evo

Re: Bored again so making a 12v 4way Distribution Box
« Reply #5 on: January 29, 2013, 10:28:02 pm »
hi mate if you don't mind me asking where do you get your plastic box's from
james
the grey box is from a electrical wholesaler and the fuse holder was from halfords.




thanks mate

R.C Property

  • Posts: 1599
Re: Bored again so making a 12v 4way Distribution Box
« Reply #6 on: January 29, 2013, 10:29:58 pm »
hi mate if you don't mind me asking where do you get your plastic box's from
james
the grey box is from a electrical wholesaler and the fuse holder was from halfords.





thanks mate

there are easier fuse holders about, that only needs one live wire to do all 4 on oneside, but that one in the pic was the only one i could pic up at short notice.
