[escorttdi]

got a purefreedom tank   what size john guest fittings pipes tubings etc to go to pump the from pump to reels    sick to damn of leaks
 pics n sizes would be good

[Spruce]

Depends on the tank size (for connector) and pump size for fittings. Shurflo pumps are 1/2".

[escorttdi]

its a 350 litre tank   and shurflo pump...... does that narrow it down..... cant find tape measure... would not help anyway as cant see the numbers on it

[p1w1]

I used speed fit fittings

[Jonny 87]

Use these...... Leak free system for life.

For the pumps;
http://www.screwfix.com/p/jg-speedfit-push-fit-flexible-tap-connector-hoses-15mm-x-mm-x-300mm-2-pack/9938g

For the pipe between;
http://www.screwfix.com/p/jg-15bpex-32499-pe-x-pipe-15-x-2m/32499

Aslong as you stick with speedfit 15 mill you can't go wrong. You can get all kinds of connections for your system at Screwfix and if you pick something up wrong you can always take it back.

The most complicated bit is to get your speedfit onto the hoselock connection. So to get round it you need one of these connectors;

http://www.ebay.co.uk/itm/like/361386116503?lpid=122&chn=ps&adgroupid=40208487538&rlsatarget=pla-470339003912&adtype=pla&poi=&googleloc=9046912&device=t&campaignid=738085096&crdt=0&ul_ref=http%253A%252F%252Frover.ebay.com%252Frover%252F1%252F710-134428-41853-0%252F2%253Fmtid%253D1673%2526kwid%253D1%2526crlp%253D172728721190_563391%2526itemid%253D361386116503%2526targetid%253D470339003912%2526device%253Dt%2526mpre%253Dhttp%25253a%25252f%25252fwww.ebay.co.uk%25252fitm%25252flike%25252f361386116503%25253flpid%25253d122%252526chn%25253Dps%2526adtype%253Dpla%2526googleloc%253D9046912%2526poi%253D%2526campaignid%253D738085096%2526adgroupid%253D40208487538%2526rlsatarget%253Dpla-470339003912%2526gclid%253DCNaBsc3gitICFccV0wod8LAGYg%2526srcrot%253D710-134428-41853-0%2526rvr_id%253D1167015872479

(Stupid long link)

Then one of these;

http://www.screwfix.com/p/jg-speedfit-pse3201wp-tap-connectors-white-15mm-x-2-pack/29175?kpid=29175&cm_mmc=Google-_-Product%20Listing%20Ads-_-Sales%20Tracking-_-sales%20tracking%20url&gclid=CKPj4-vhitICFQ6eGwodoG0AaA

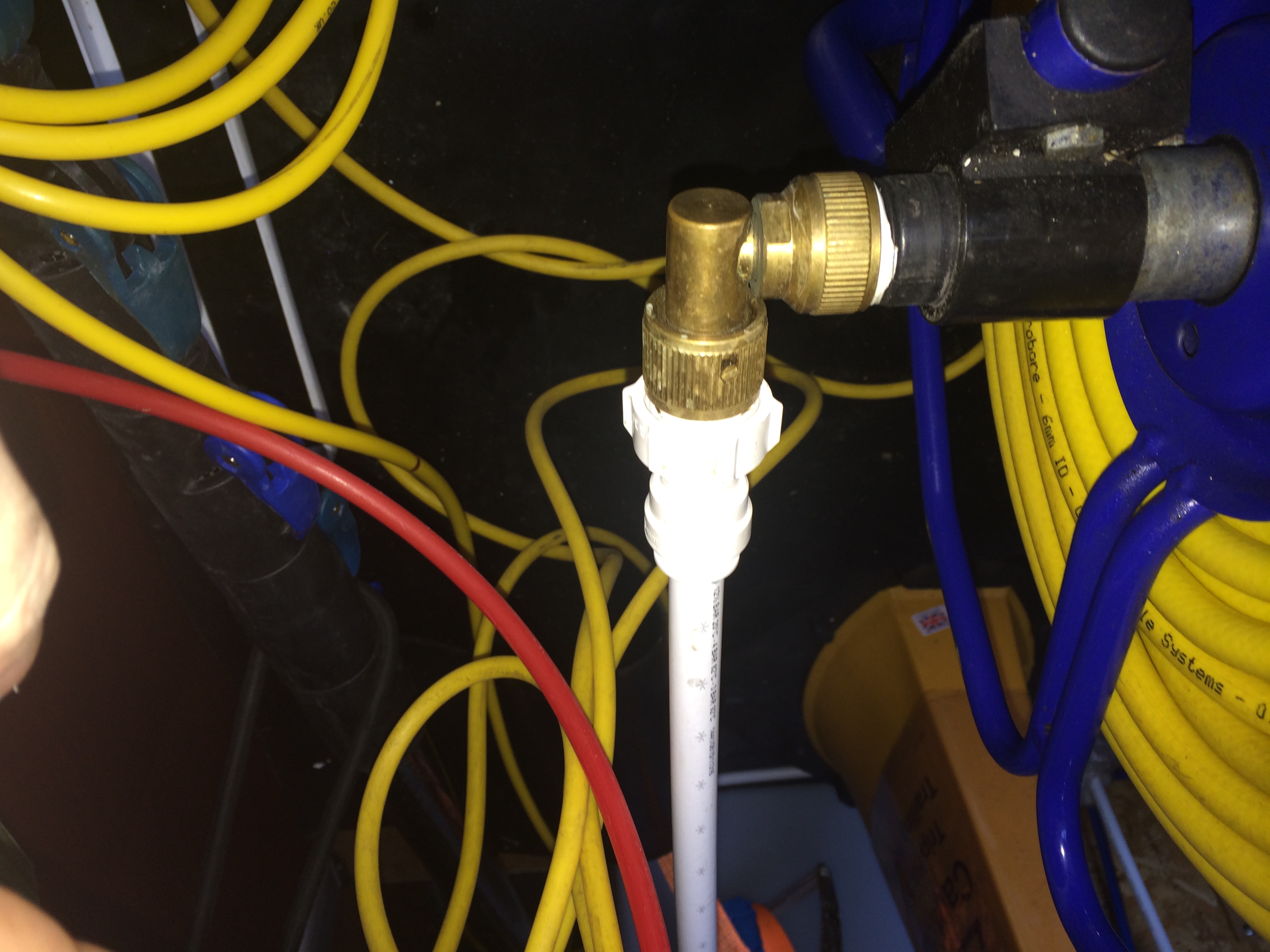

Then basically what you do is unscrew the brass piece off the bottom of hoselock and throw it away. This leaves you with the hoselock collar that screws onto the speedfit like this.........



The only thing I can't help you with is the fitting from the tank to the pump as they are all different and just depends what you have.

It will usually be something like this that you need though;
http://www.screwfix.com/p/jg-speedfit-15aptp-washing-machine-tap-15mm-x/18908

[escorttdi]

cheers jonny

[Jonny 87]

No prob.

[best]

cheers jonny

e
Do all brass hose lock type connector have the same thread or is your  link needed. (I do know the plastic ones have different threads)
